Foam Barrier Composite

Acoustical Foam Barrier Composite Panels—demanding applications

Composites are ideal in applications that demand increased noise absorption, sound transmission loss, and/or vibration damping. Our composites contain a barrier material, a high-performance acoustical foam, and a 1/4″ foam decoupler. Key composite features are:

• Easy to handle and install
• One pound per square foot loaded vinyl barrier
• Strong, durable bonds between layers are created by adhering the barrier directly to the foam

Foam Barrier Composites Panels are made of open-cell foam combined with 1-pound Mass-Loaded Vinyl and are available in flat-face foam, mini-wedge-face foam, Black or Gray Tuftane Face, and Mirrored Face.

Available in the following:

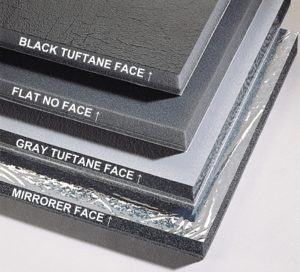

Patterns: Flat Face, Mini Wedge Face, Tuftane Face, Mirrored Face
Thickness: 1”
Size: 24” x 48”
Density: 0.7 lb./cubic foot (foam), 1 lb./cubic foot (vinyl)
Flammability: Class 1
Flame Spread: 10
Smoke Density: 50
Qty per Box: 6 pieces
Melamine Foam Colors: Charcoal, Light Gray, White
Tuftane Face Colors: Black, Light Gray

* Also available in 48″ x 48″. Please call our office for pricing.
